If you work in IT in the DoD in any capacity, then you know your systems can be a pain to work with if you followed a Security Technical Implementation Guide (STIG). This can be even more of a pain when following a commercial vendor’s installation or configuration documentation, since they write in the general sense and can’t possibly know every quirk in our environment.
From the Windows Server 2016 STIG, (Finding ID: V-73691) the LAN Manager authentication level must be set to send NTLMv2 response only and to refuse LM and NTLM.
From the VMware vSphere 6.5 ESXi STIG, (Finding ID: V-94023) the ESXi host must use the vSphere Authentication Proxy to protect passwords when adding ESXi hosts to Active Directory.
So even though the current STIG is only referencing vSphere 6.5, this can still be used for newer versions. During the configuration of a vCenter Server 7.0 Authentication Proxy, I found that the proxy kept not authenticating. After reviewing the logs on the Domain Controller, it was found that Likewise was sending the authentication to the Domain Controller with an NTLM response and not NTLMv2.
Reconfigure the Likewise service to send NTLMv2 and try to configure the Authentication Proxy again. This time, the configuration should be successful. You can further test by adding an ESXi host to vCenter and ensure it properly joins the domain.
Before configuring NTLMv2 on Likewise

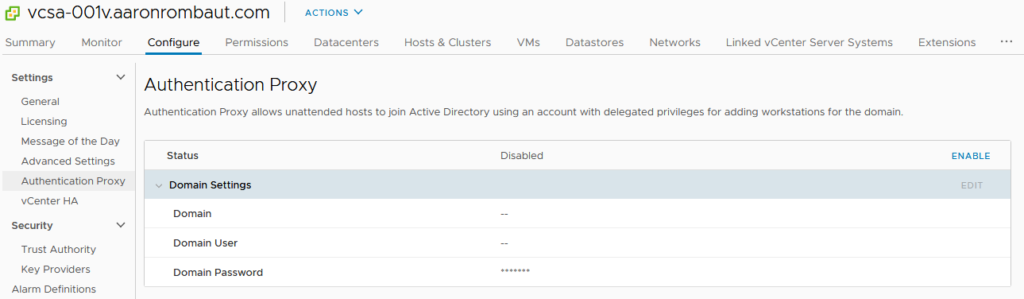

- Click the ENABLE link.
- Click the EDIT link.
Fill in the Domain, Domain User, and Domain Password settings. Click the SAVE button.

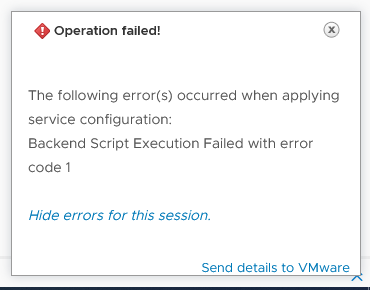

Notice the Operation failed! message.

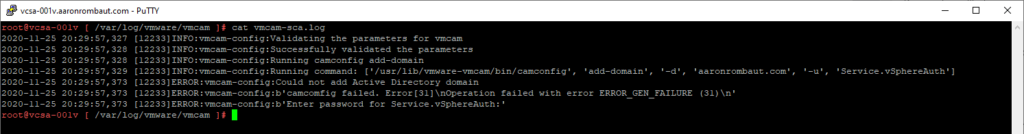

You can also view the log located at /var/log/vmware/vmcam/vmcam-sca.log. Below is an excerpt, notice the Enter password for Service.vSphereAuth line. That indicates that it was not sending the correct password because we know that we typed it into the window.
I ended up tailing the log with the following so I could see in real-time what was occurring.
tail -f /var/log/vmware/vmcam/vmcam-sca.log
Configuring Likewise to Send NTLMv2
Run the following bold commands, the rest is for context.
/opt/likewise/bin/lwregshell
\> cd HKEY_THIS_MACHINE\Services\lsass\Parameters\NTLM
HKEY_THIS_MACHINE\Services\lsass\Parameters\NTLM> list_values
"SendNTLMv2" REG_DWORD 0x00000000 (0)
"Support128bit" REG_DWORD 0x00000001 (1)
"Support56bit" REG_DWORD 0x00000001 (1)
"SupportKeyExchange" REG_DWORD 0x00000001 (1)
"SupportNTLM2SessionSecurity" REG_DWORD 0x00000001 (1)
"SupportUnicode" REG_DWORD 0x00000001 (1)
HKEY_THIS_MACHINE\Services\lsass\Parameters\NTLM> set_value SendNTLMv2 1
HKEY_THIS_MACHINE\Services\lsass\Parameters\NTLM> list_values
+ "SendNTLMv2" REG_DWORD 0x00000001 (1)
"Support128bit" REG_DWORD 0x00000001 (1)
"Support56bit" REG_DWORD 0x00000001 (1)
"SupportKeyExchange" REG_DWORD 0x00000001 (1)
"SupportNTLM2SessionSecurity" REG_DWORD 0x00000001 (1)
"SupportUnicode" REG_DWORD 0x00000001 (1)
HKEY_THIS_MACHINE\Services\lsass\Parameters\NTLM> quit
/opt/likewise/bin/lwsm restart lwio
Stopping service reverse dependency: lsass
Stopping service reverse dependency: rdr
Stopping service: lwio
Starting service: lwio
Starting service reverse dependency: rdr
Starting service reverse dependency: lsass
Go back to vSphere Client and configure the Authentication Proxy again. You may have to disable and enable the service again if you didn’t restart the service while connected through SSH. This time, it should work without an error. If you are tailing the log, then you should see Active Directory domain added successfully at the bottom.
From here you can Import the vSphere Authentication Proxy Certificate to ESXi Host.
